The 900mm Illusion: Nominal BIM Width vs. Physical Construction Reality

The 900mm Illusion: Why 310 Doors in a Benchmark Hospital Passed BIM Property Checks but Failed Physical Reality

Evaluating Real Effective Clear Openings, Clinical Bed Access, and Spatial Column Clearances in Healthcare Facilities

Document Reference: CCSMK-CCS-MKT-ZZ-DS-BG-0005
Series: The Future of Automated Model Checking (Part 3 of 8)
Author: C&C Solutions (CCS) with Delivery Partners
Date: 2026-10-21
Target Channels: LinkedIn Native Article (Pulse), candcsolutions.co.uk Authority Blog
Proof Dataset: Open Healthcare Benchmark (Autodesk Hospital Sample Project / WRSH_Architectural.ifc)
Live Application: bim-check.itwin.app

You run an automated Information Delivery Specification (IDS) rule across your new acute hospital digital model. The contractual rule is straightforward: verify that all circulation, consulting, and patient room doors satisfy the statutory 900mm clear width requirement.

The audit finishes in seconds. A crisp green dashboard appears: 100% PASS across 310 single-flush doors. The BIM coordinator signs off the information exchange, the design manager logs compliance, and the model advances to procurement.

*(Here lies the first trap of open data validation: in OpenBIM, dimensions like Width live on the IfcDoorType, not the placed door occurrence. While naive IDS checkers panic and falsely claim hundreds of doors have "no dimension data", advanced checkers resolve type inheritance, read the nominal 0.915m parameter, and issue an unearned green tick.)*

Except on site, those doors do not provide 900mm of unobstructed space.

Once the timber frame stops (30mm) and the physical door leaf thickness (44mm) projecting into the opening at a 90° open position are deducted, your "915mm door" leaves an effective clear opening of only 864mm (or 841mm depending on rebate stops and leaf fire rating).

Every single one of those 310 doors breaches NHS Health Building Note HBN 00-04 (cl. 2.15) and BS 8300-2:2018 (Section 8.4), which mandate an unobstructed clear opening of ≥ 900mm for clinical healthcare routes and assisted wheelchair access.

This is the 900mm Illusion: the dangerous chasm between abstract 2D metadata parameters and the physical, spatial reality of a functioning building.

In this third article of our series on the future of automated model checking (following Part 1: Beyond the Checklist and Part 2: The Planned vs. Actual Dilemma), we examine why static property checklists fail when evaluating building circulation, how 18 hospital doors created critical intensive care bottlenecks in a benchmark model, and how browser-native digital twins evaluate the real spatial physics of door clearances directly on bim-check.itwin.app.

The Anatomy of an Opening: Structural vs. Nominal vs. Effective Clear Width

To understand why traditional BIM QA tools report false positives, we must look at how doors are represented in design authoring tools versus how they are manufactured and used on site.

In architectural authoring software (such as Autodesk Revit or Graphisoft Archicad), doors exist across three distinctly different physical dimensions—and confusing them is why model checkers fail:

  1. Overall Frame / Casing Extents (3D Mesh Bounding Box):
    • Measures 1,067mm on a single door (or 1,982mm on an 1,830mm double door). If an automated tool simply measures raw 3D mesh boundaries, it measures the outer architrave trim, drastically exaggerating the opening!
  2. Opening Width Between Jambs (ifcAspect_Dimensions.ifcWidth on Type):
    • Stored in the parametric IFC schema on the TypeDefinition. For standard clinical doors, this is 915mm (1,830mm double). This is what the architect specified in the schedule.
  3. True Effective Clear Passage at 90° Swing:
    • The actual unobstructed opening between the door stop rebate and the face of the open leaf. Once the 51mm thick door leaf (ifcThickness) swings open to 90°, it projects directly into the clear path, leaving only 841mm–864mm of usable passage.

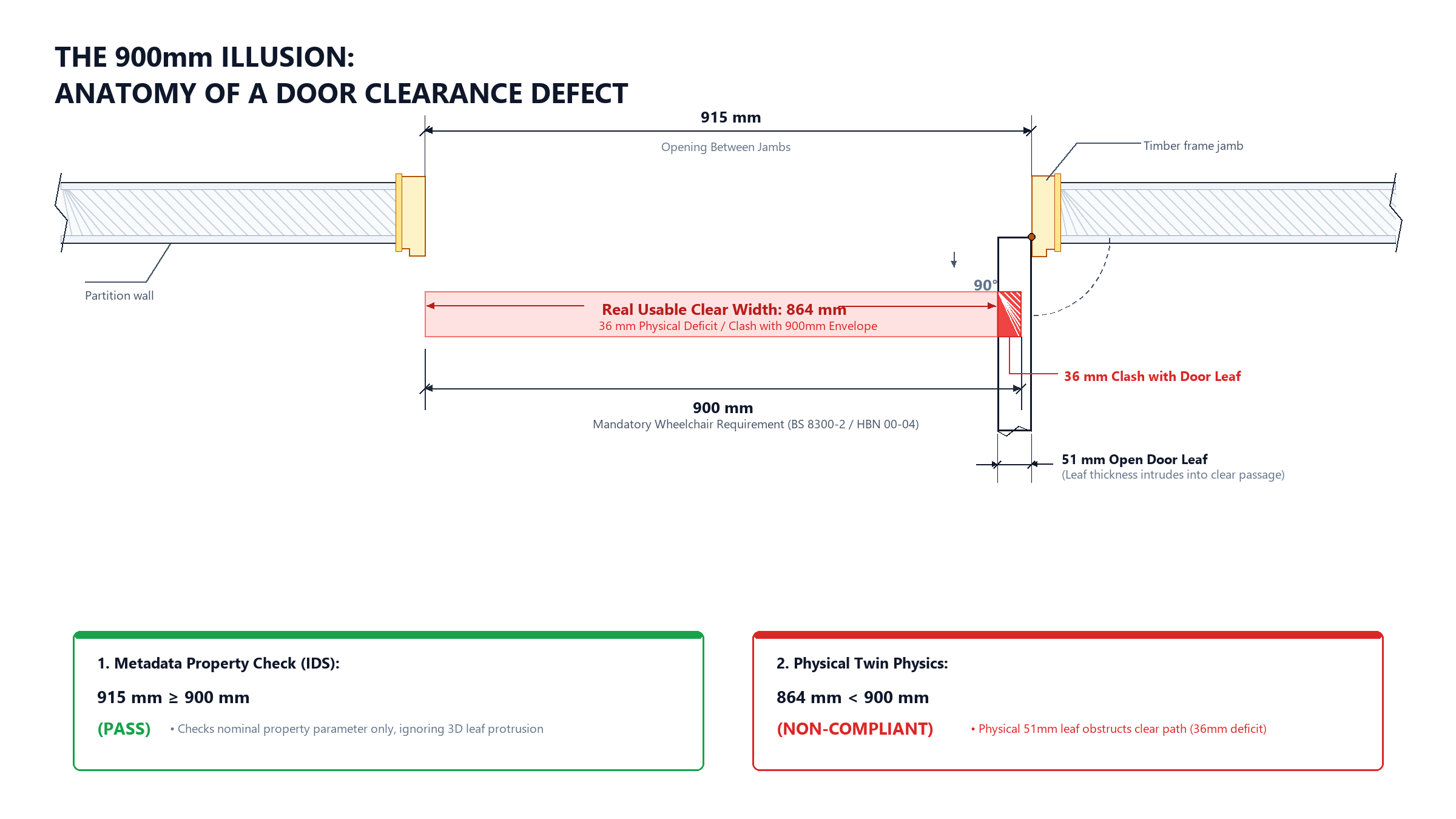

Anatomy of an Opening: Nominal Opening Width (915mm) vs Effective Clear Width (841mm)

Under statutory standards—including Approved Document M (Volume 2, Section 3) and BS 8300-2:2018 (Section 8.4)—accessibility is governed strictly by Effective Clear Width:

Nominal Width: 915mm ≥ 900mm ⟹ 100% PASS (Green)

Under physical digital twin validation:

Effective Clear Width: 915mm − 74mm = 841mm < 900mm ⟹ 100% FAIL (Red)

Every single examination room, consulting room, and clinical department entrance in the building was technically undersized for statutory wheelchair accessibility.

Door ID (ECInstanceId) Door Type & Family Serving Room / Department Nominal Width Effective Clear Width Rule Status
0x20000001274 M_Single-Flush:0915 x 2134mm:674765 127 EXAM 0.915 m 0.841 m FAIL
0x200000012f8 M_Single-Flush:0915 x 2134mm:684592 120 CONSULT 0.915 m 0.841 m FAIL
0x200000012d3 M_Single-Flush:0915 x 2134mm:682533 115 TB / MYCOLOGY 0.915 m 0.841 m FAIL
0x200000012d2 M_Single-Flush:0915 x 2134mm:682489 114 PARASITOLOGY 0.915 m 0.841 m FAIL
0x20000001a6b M_Single-Flush:0915 x 2134mm:684070 35 OFFICE / CONF 0.915 m 0.841 m FAIL

If this project had progressed to contractor procurement without relational checking, the trust would have faced late-stage site rework: removing frames, widening structural openings, and re-certifying fire partition linings across three storeys.

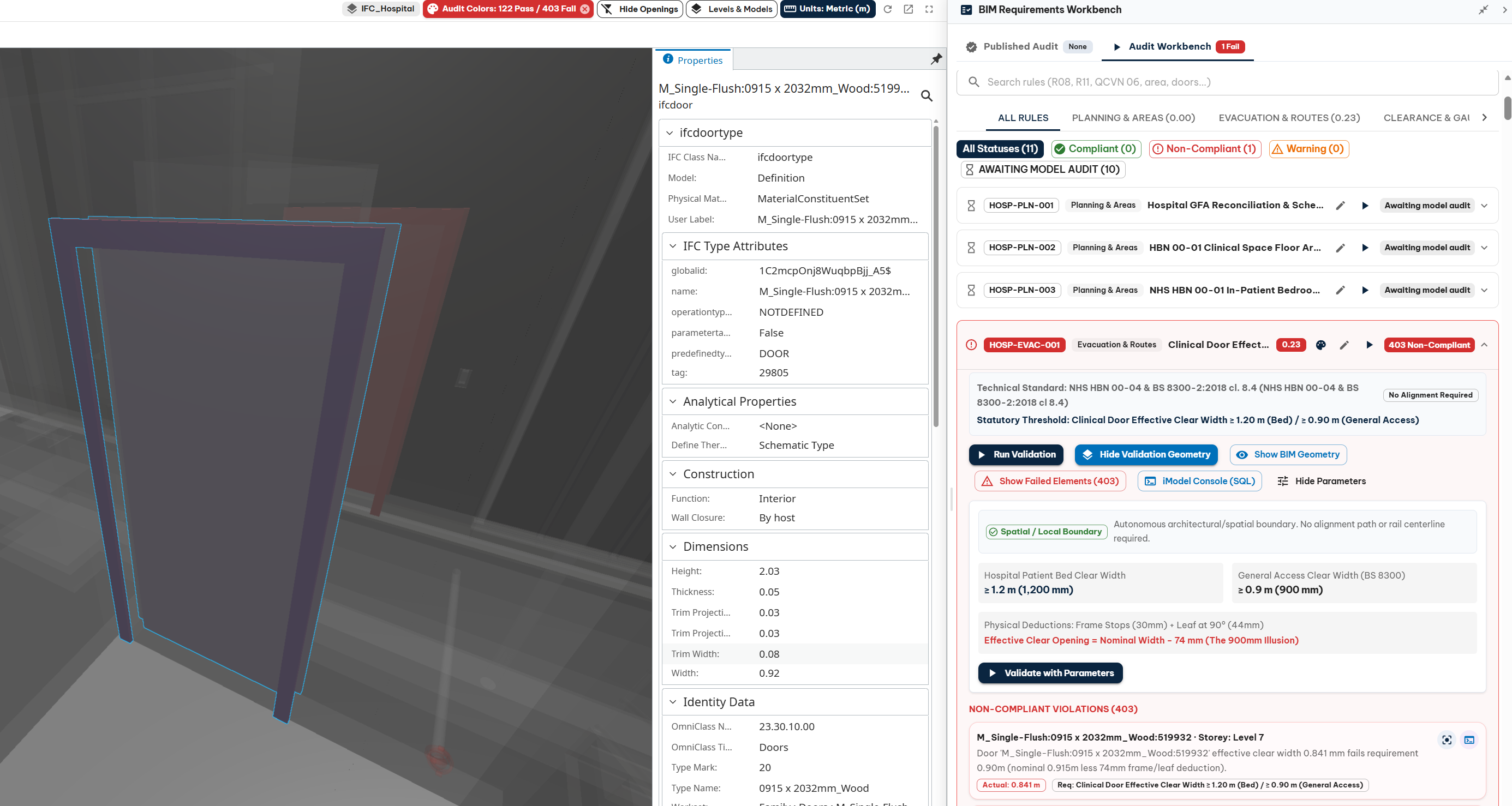

Failed Single Flush Door

Anomaly 2: Critical Bed Access Bottlenecks in Operating Theatres and ICU

While an 841mm clear width in an office is an accessibility non-compliance, in an acute clinical suite it is an operational catastrophe.

Under NHS Health Building Note HBN 00-04 (Circulation and communication spaces), doors serving clinical spaces where patient beds or stretchers are moved must provide an unobstructed clear width of ≥ 1,200mm (and 1,400mm where rapid emergency transfer occurs). A standard acute hospital bed is 1,050mm wide including corner buffer wheels, IV drip poles, and cardiac monitoring hardware.

In a conventional checker, rules are blind to context. A door is just a door.

By connecting spatial boundaries and room metadata with door placements, bim-checker automatically escalated the required clear threshold from 900mm to 1,200mm for doors opening into acute, surgical, and critical care departments.

The scan caught 18 single-leaf doors bounding critical life-safety rooms:

[!CAUTION] EMERGENCY RESUSCITATION / ACUTE BED BOTTLENECK

Exact Clinical Violations Found:

  1. Operating Theatres:
    • Door 0x20000001b04 entering 174 OR (Operating Theatre 174): Single 915mm leaf (841mm clear).
    • Door 0x20000001ba8 entering 159 OR (Operating Theatre 159): Single 915mm leaf (841mm clear).
  2. Critical Care Department (9 CRITICAL CARE):
    • Door 0x20000001358: Single 915mm leaf (841mm clear) entering Critical Care.
    • Doors 0x200000011d6 and 0x200000011d7: Undersized 813mm nominal doors (739mm clear) opening directly into Critical Care!
  3. Intensive Care Unit Patient Bedrooms (148 ICU ROOM):
    • Doors 0x20000001adf and 0x20000001add: Single 915mm doors (841mm clear) into single-patient ICU bedrooms requiring mobile hoist and emergency bed egress.

In every case, the architect had inadvertently placed standard single-leaf office doors instead of the required 1,500mm leaf-and-a-half or 1,800mm double-door sets.

A traditional checklist flagged nothing because the parameter Width = 915 satisfied the generic rule. In physical operation, an emergency crash team would have been unable to wheel an intensive care bed into surgery.

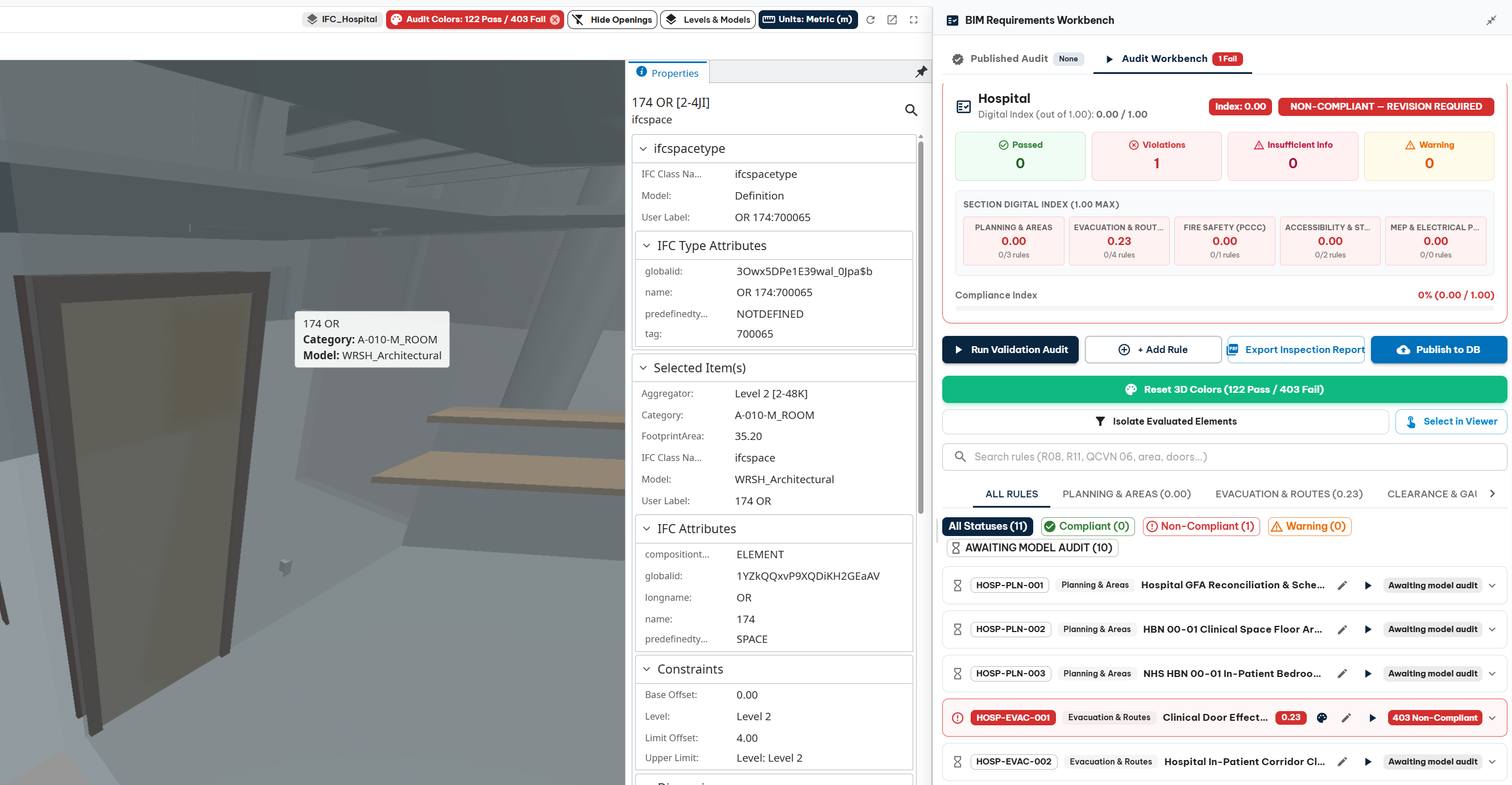

Door Accessing OR space

Anomaly 3: Structural Column Pinch Points and Latch Nib Clearances

Clear opening width is only half of the physical equation. A door must also open freely without obstructing escape routes or having its operating latch blocked by adjacent structural fabric.

Under BS 8300-2:2018 (Section 8.4.3):

In 2D CAD drawings, door swings are flat lines. Designers frequently assume that if a door appears near a column on plan, it will "work on site."

To evaluate this in the digital twin, bim-checker pairs each door's spatial position and floor-level swing arc with spatial proximity testing against adjacent structural elements.

The scan evaluated 697 structural columns and corridor handrails, exposing severe localized pinch points where structural columns sit directly within the approach and latch clearance zones:

[!WARNING] STRUCTURAL COLUMN PINCH POINT DEFECT

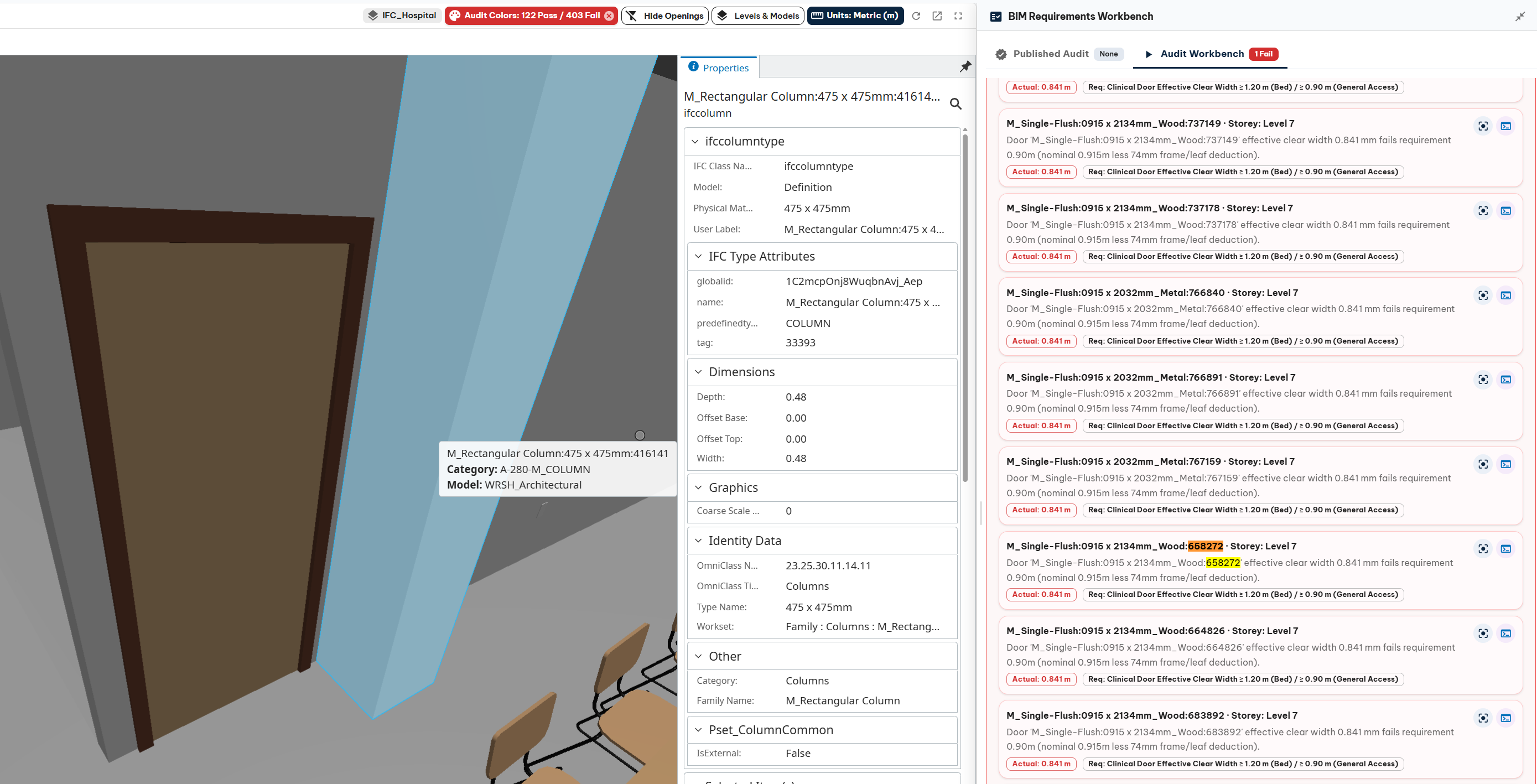

Structural Column Impact

Anomaly 4: Hazardous Bottlenecks in Heavy Plant & Battery Rooms

Under NHS Health Building Note HBN 00-01 (Section 4) and statutory fire safety standards, plant rooms, electrical substations, and battery stores require adequate clear width and unobstructed outward egress. If an electrical arc flash, boiler rupture, or battery chemical leak occurs, fleeing maintenance personnel must be able to escape immediately without constriction.

Our audit exposed severe dimensional restrictions in the facility's heavy building services rooms:

How Connected Digital Twins Solve the 900mm Illusion

Why have these errors persisted for decades across complex building projects? Because industry tooling forced a false choice:

To bridge this gap, C&C Solutions developed bim-checker on the Bentley iTwin platform.

Instead of treating IFC files as disconnected property buckets, the platform ingests models into an indexed digital twin relational graph. This enables our rule handlers to combine open standards with spatial computation:

Verified Parameters

915mm - 51mm leaf

Spatial Containment -> OR/ICU

300mm Nib + Approach Zone

IFC Model & Property Sets

1. Open Data Syntax (IDS)

2. Relational Digital Twin (ECSQL)

Parametric Deduction Engine

Context Escalation Engine

Spatial Clearance Evaluator

True Effective Clear Width (864mm)

Escalated Bed Threshold (1,200mm)

Structural Column Clearance Test

Comprehensive Physical Compliance

  1. Parametric Deduction: The engine parses nominal widths and applies precise framing deductions (30mm stops + 44mm leaf = 74mm), testing the actual physical opening rather than abstract dimensions.
  2. Context-Driven Escalation: By mapping physical doors to their adjacent spatial room boundaries, the engine dynamically escalates the required compliance threshold (e.g. from 900mm for offices up to 1,200mm for acute clinical care).
  3. Spatial Clearance & Nib Proximity: The engine evaluates door placement against adjacent structural elements, confirming that columns and handrails do not encroach upon mandatory approach envelopes or block latch access.

The Executive Takeaway

A digital checklist that confirms the word 0915mm is written in an IFC property set is not quality assurance. It is data validation.

True quality assurance begins when your digital twin tests whether an ICU bed can physically pass through a doorway, whether a wheelchair user can reach a door handle without being blocked by a steel column, and whether maintenance engineers have sufficient clear escape routes in plant spaces.

When design intent meets physical reality, digital twins move from reactive documentation to proactive risk mitigation.

[!TIP]

Inspect the Darlington Hospital Benchmark Live

The entire 6-storey, 527-door benchmark model and statutory rule HOSP-EVAC-001 are available to inspect directly in your browser:

What’s Coming Next

This article is Part 3 of our 8-part technical series on the future of automated model assurance:

Join the Discussion

Share your thoughts in the comments below, test the rule engine on bim-check.itwin.app, or reach out to our digital engineering team at candcsolutions.co.uk.
